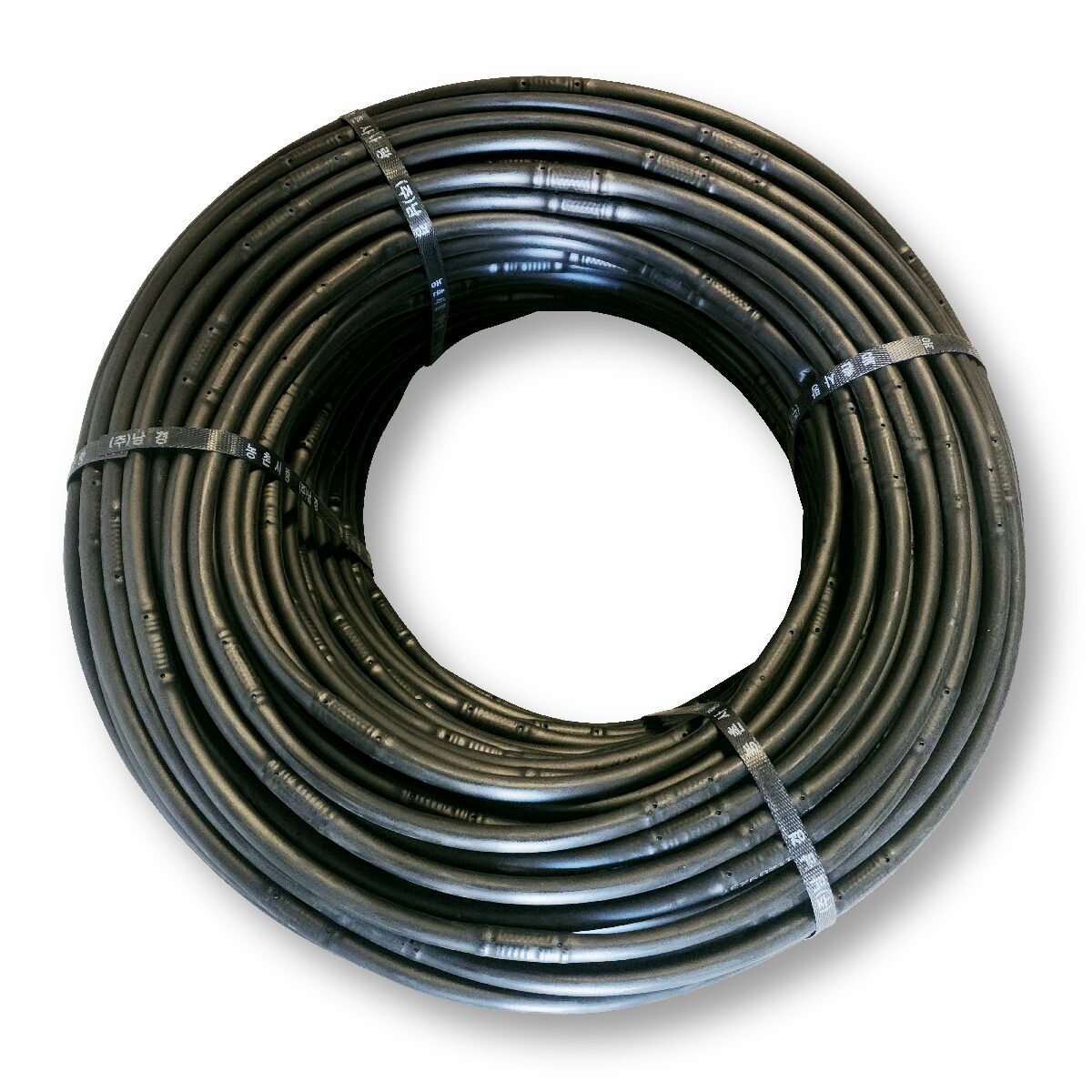

Water Line
For perennial crop drip irrigation

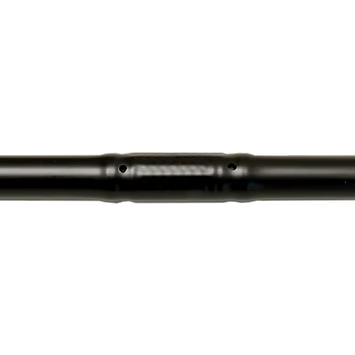

- Better flexibility with flat dripper
- Superior durability
- Less clogging
- Resistant to UV and agricultural chemicals
- Low CV under 0.3
Description

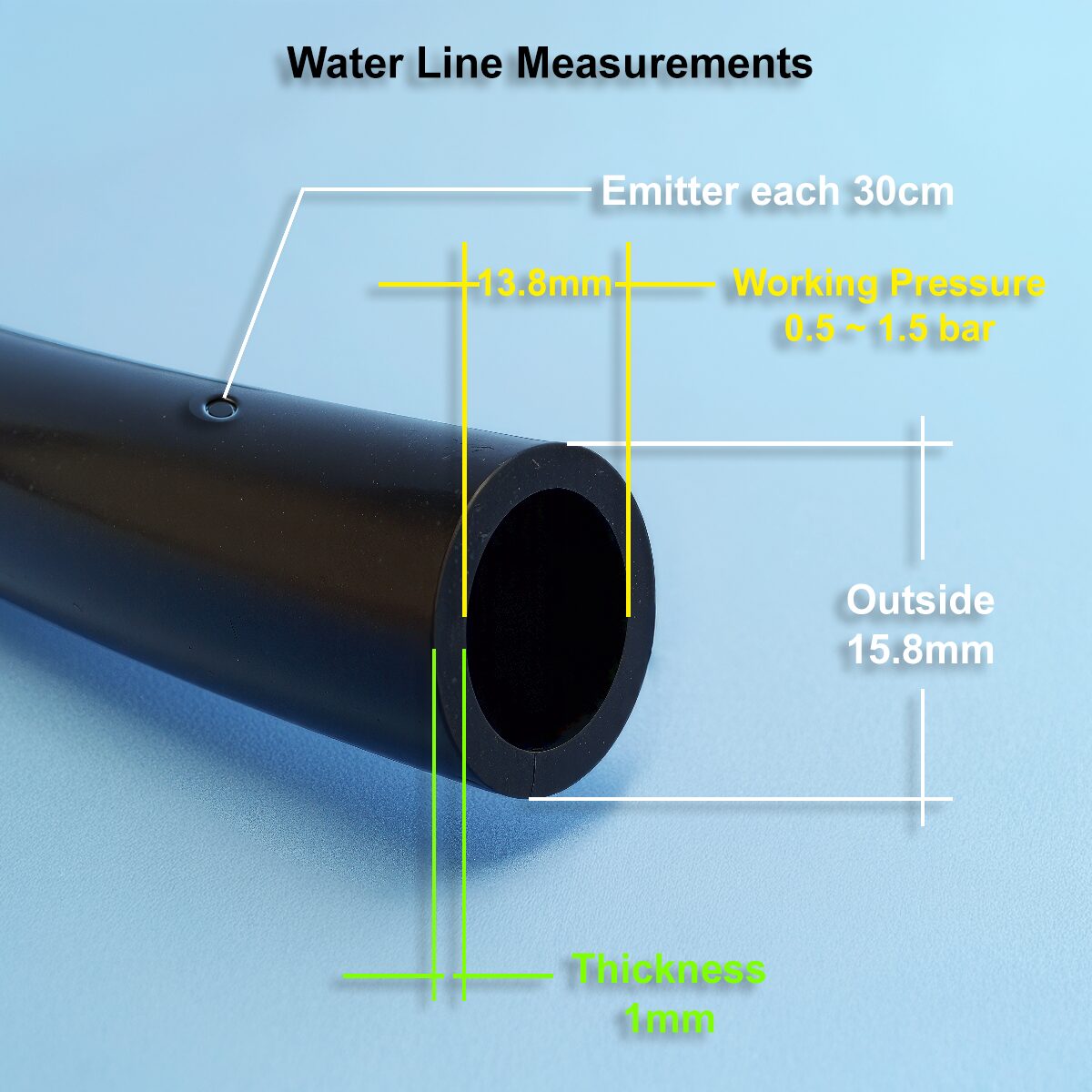

| General Specification | International Metrics | U.S Metrics |
|---|---|---|
| Outside Diameter | 15.8 mm | 5/8 Inches |
| Wall Thickness | 0.7 mm ~ 1.0 mm(27.5 mil ~ 39 mil) | 0.027 ~ 0.04 inches(27.5 mil ~ 39 mil) |

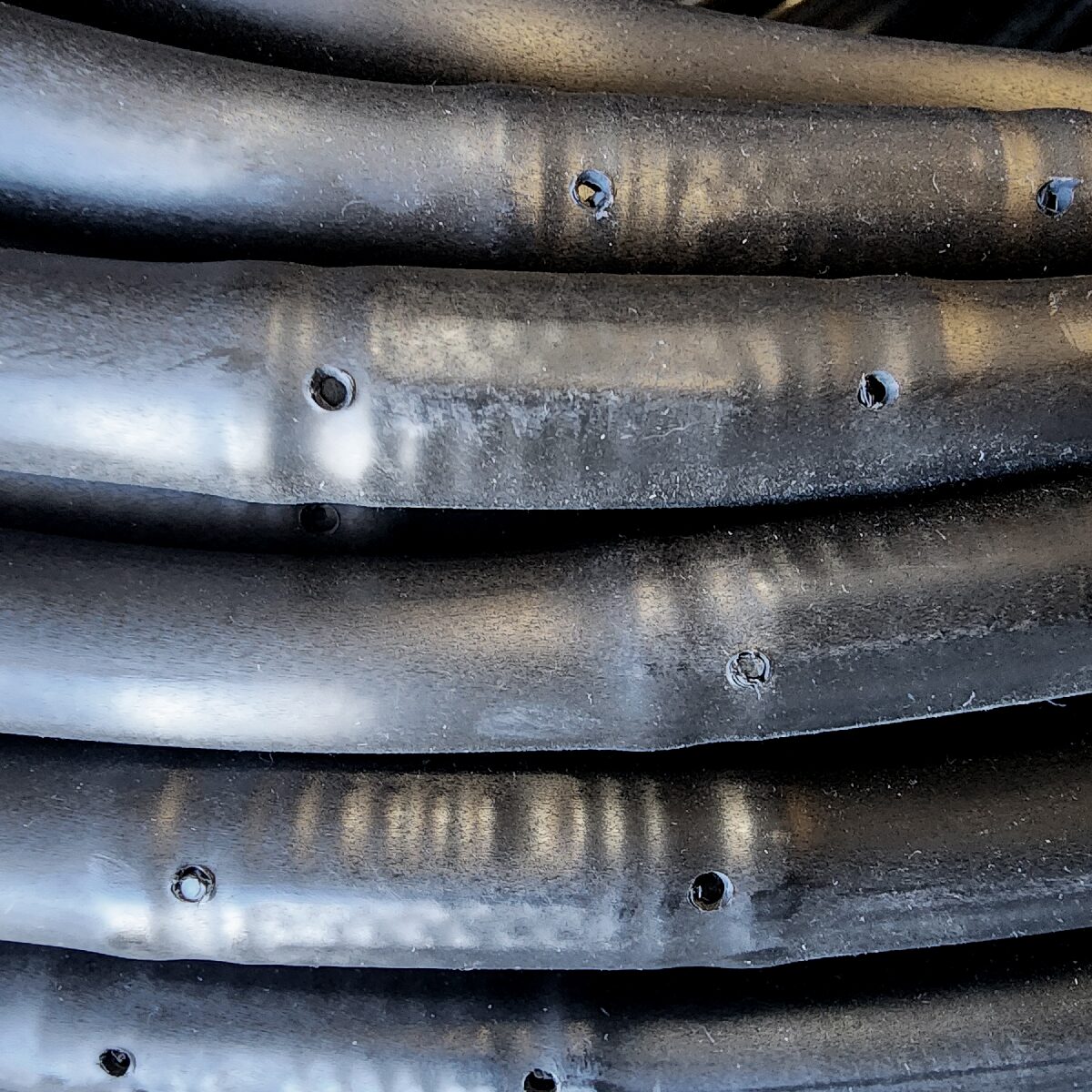

| Emitter Distance | 15 ~ 100 cm | 6 ~ 40 inches |
| Nominal Flow Rate | 1.8 LPH at 1 bar | 0.48 GPH at 14.5 psi |
| Working Pressure | 0.5 ~ 1.5 bar | 7.25 ~ 21.75 psi |
| Filtration | 120 mesh | 120 mesh |
| Roll Length | 300 / 400 m | 984 / 1312 ft |
