3/4"

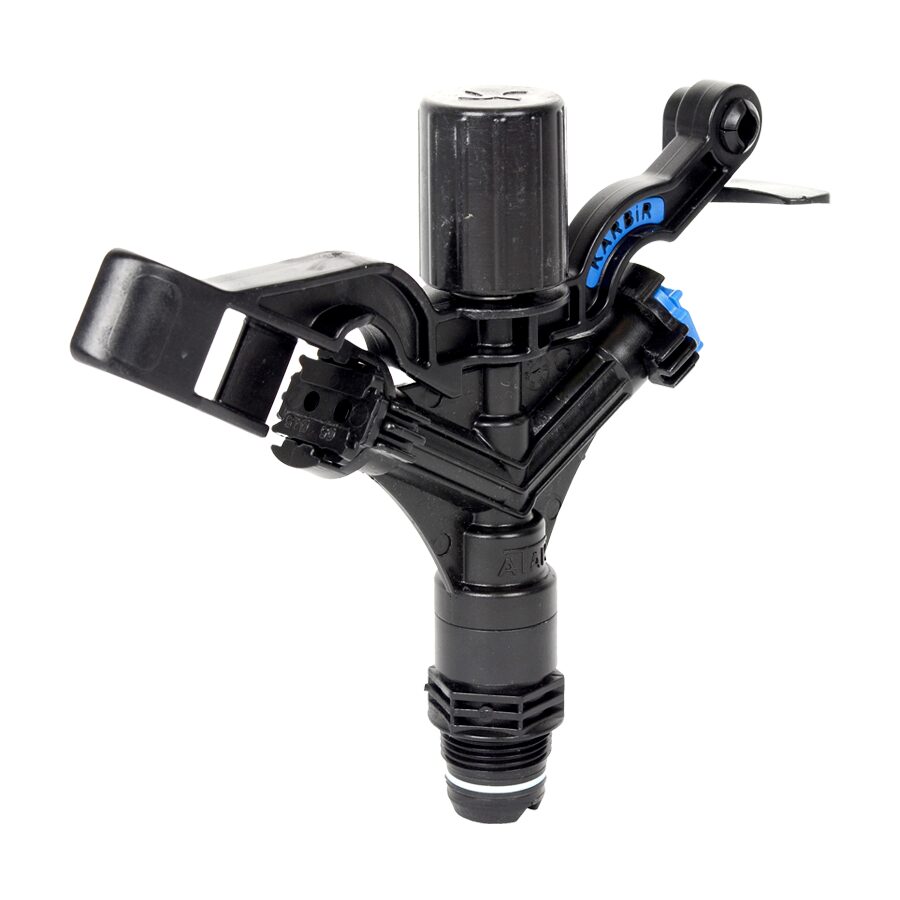

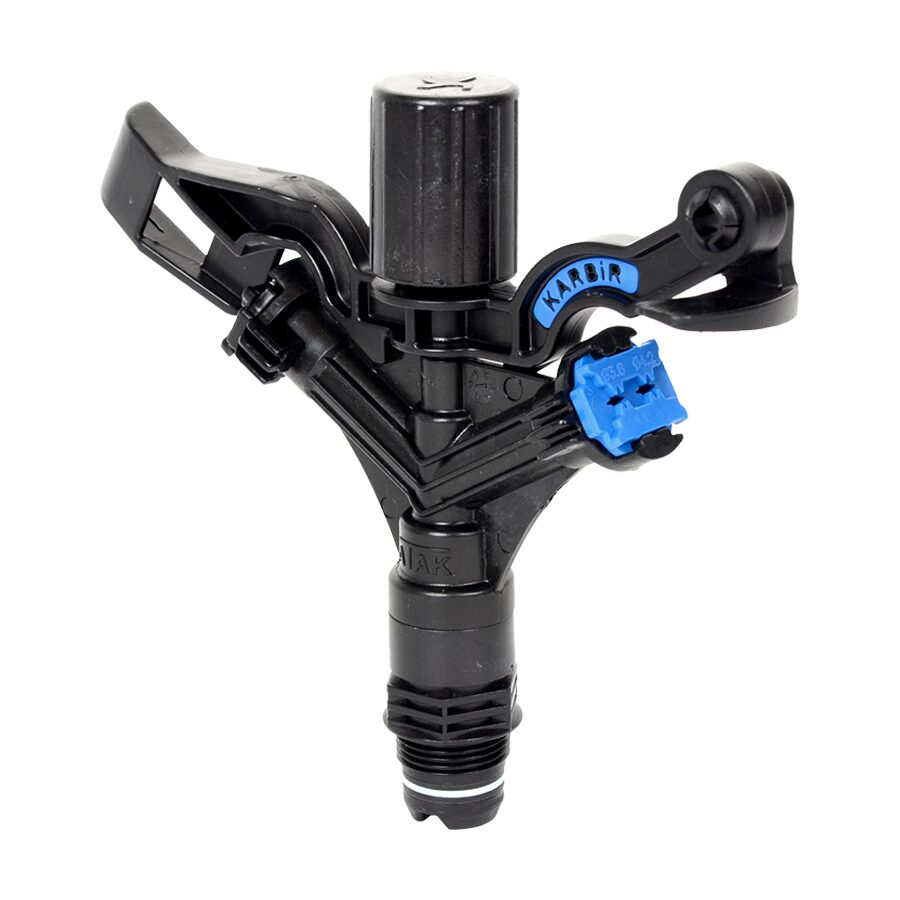

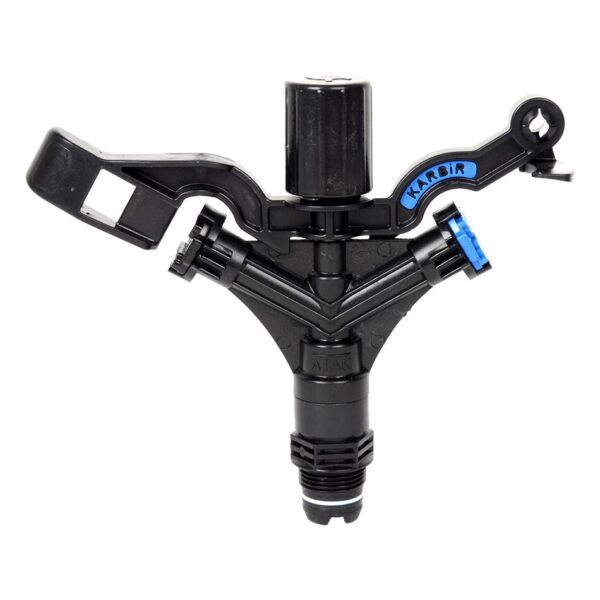

Impact Sprinkler 3/4 inch (K-Atak) – Karbir
By means of the delayed breaker, the feature of individual irrigation on the single line is ensured. With it’s varied nozzle diameters, it provides different irrigation options according to the product and soil structure.
- 3/4″ male connection
- Uniform distribution
- Stainless steel spring and pin
- Sliding, adjustable nozzles and jet breaker
Description
- The manually-adjusted delayed breaker provides homogenous water distribution at the requested level
- The closed spring installment means that the spring is protected from external factors
- With its angle of 30° x 30° for water exit, the exposure to unfavorable weather conditions is minimised
- Easily cleaned as the nozzles can come apart by hand
- For water tightness, o-ring system was used in the nozzles
- Features 4 different flow adjustments, without changing nozzle
| Nozzle | 2 bar | 3 bar | ||
|---|---|---|---|---|
| mm | Flow m3/h | Distance mt | Flow m3/h | Distance mt |
| 5.0 x 4.2 | 2.1 | 13 | 2.25 | 14 |
| 5.0 x 3.8 | 1.9 | 13 | 2 | 14 |
| 5.0 x 2.5 | 1.7 | 13 | 1.8 | 14 |
| 4.5 x 4.2 | 2 | 12 | 2.1 | 13 |
| 4.5 x 3.8 | 1.85 | 12 | 1.95 | 13 |
| 4.5 x 2.5 | 1.6 | 12 | 1.7 | 13 |
| 3.8 x 3.8 | 1.65 | 11.5 | 1.75 | 12 |
| 3.8 x 2.5 | 1.45 | 11.5 | 1.6 | 12 |
