1/2"

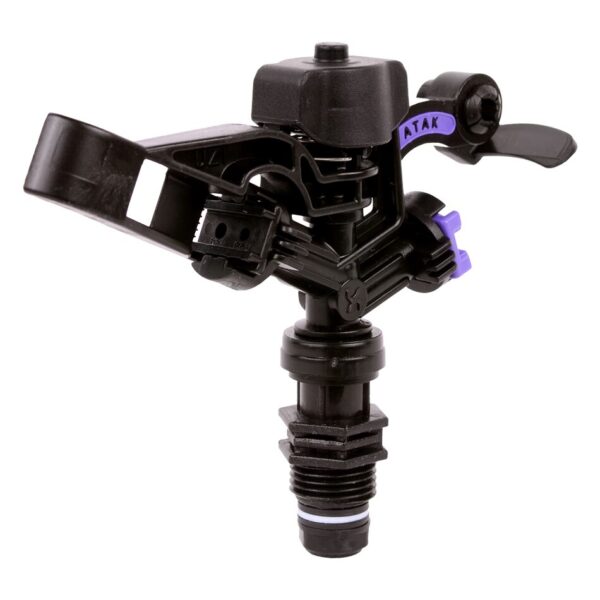

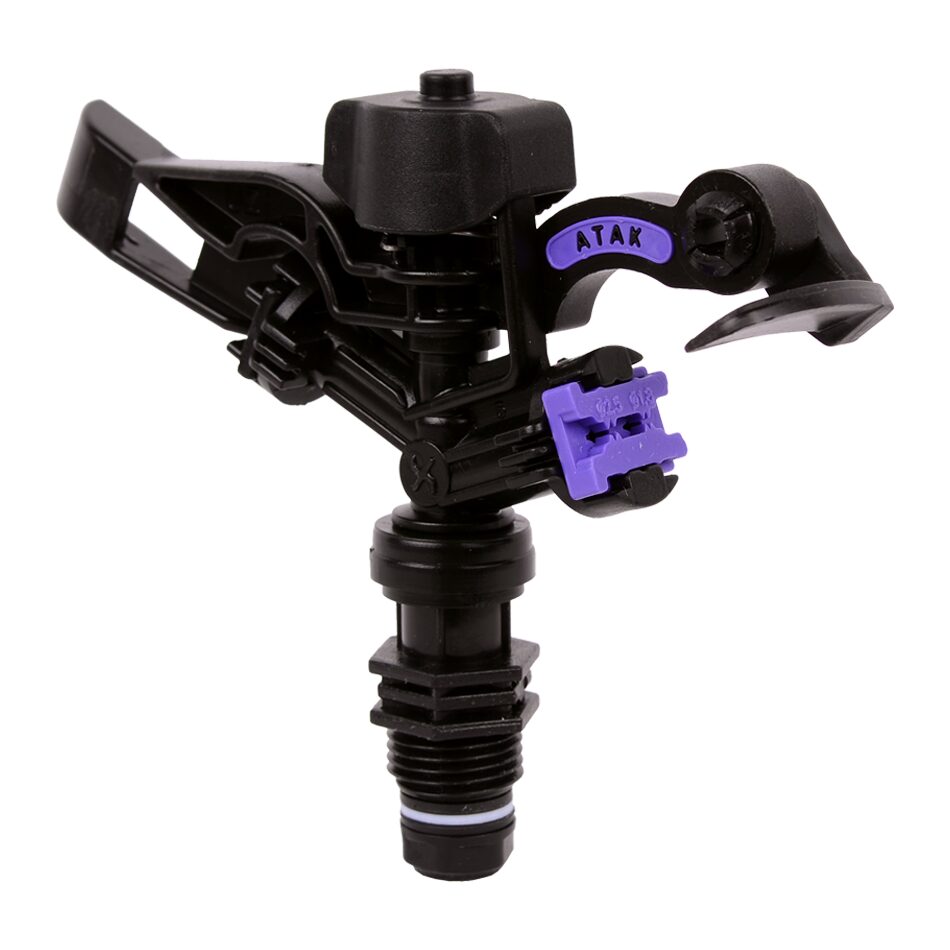

Impact Sprinkler 1/2 inch (K-Mini Atak) – Karbir
The K-Mini Atak has a single grooved wing, which provides the opportunity to distribute the water more homogeneously. With it’s varied nozzle diameters, it provides different irrigation options according to the product and soil structure.
- 1/2″ male connection
- Uniform distribution
- Stainless steel spring and pin
- Sliding adjustable nozzles and jet breaker
Description
- With ½’’ entry, it is designed to be run with less water and pressure

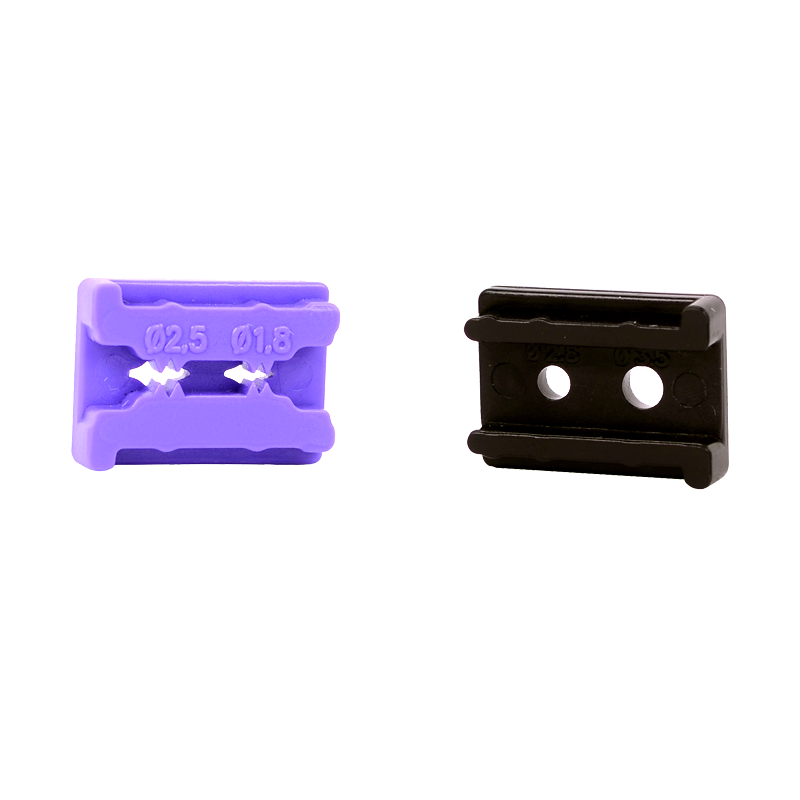

- The nozzles can be cleaned up easily, as the nozzle can be easily dismantled by hand
- The angle of 27° x 25° for water exit, means that it gets the feature of surface irrigation
- With designed nozzles, 4 different flow adjustments can be made
| NOZZLE | 1 BAR | 1.5 BAR | 2 BAR | |||
|---|---|---|---|---|---|---|
| mm | Flow m3/h | Distance mt | Flow m3/h | Distance mt | Flow m3/h | Distance mt |
| 3.5 x 2.5 | 0.85 | 11 | 0.95 | 11 | 1.1 | 12 |
| 3.5 x 1.8 | 0.75 | 11 | 0.85 | 11 | 1 | 12 |
| 2.8 x 2.5 | 0.7 | 10 | 0.8 | 10 | 0.9 | 11 |
| 2.8 x 1.8 | 0.6 | 10 | 0.65 | 10 | 0.72 | 11 |
