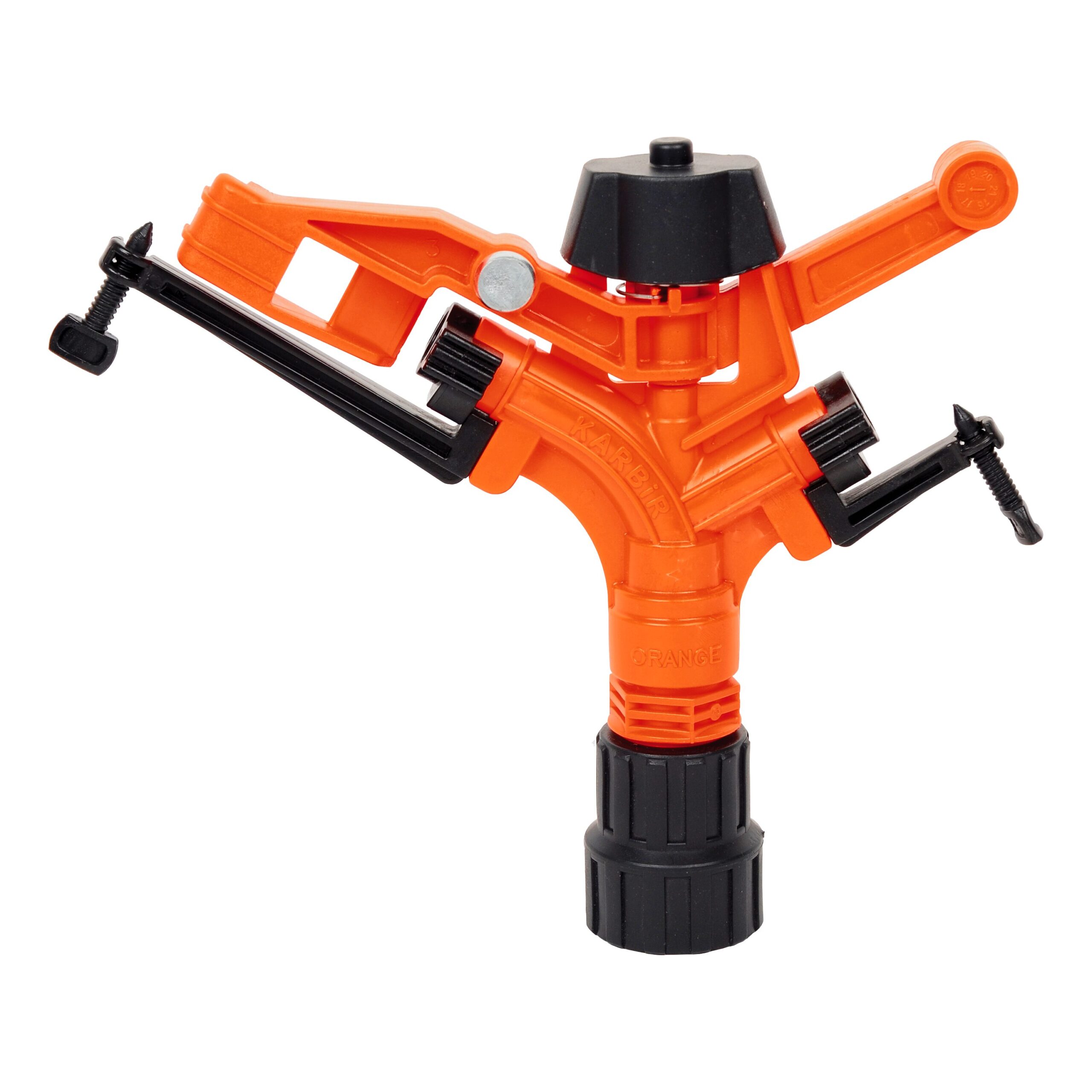

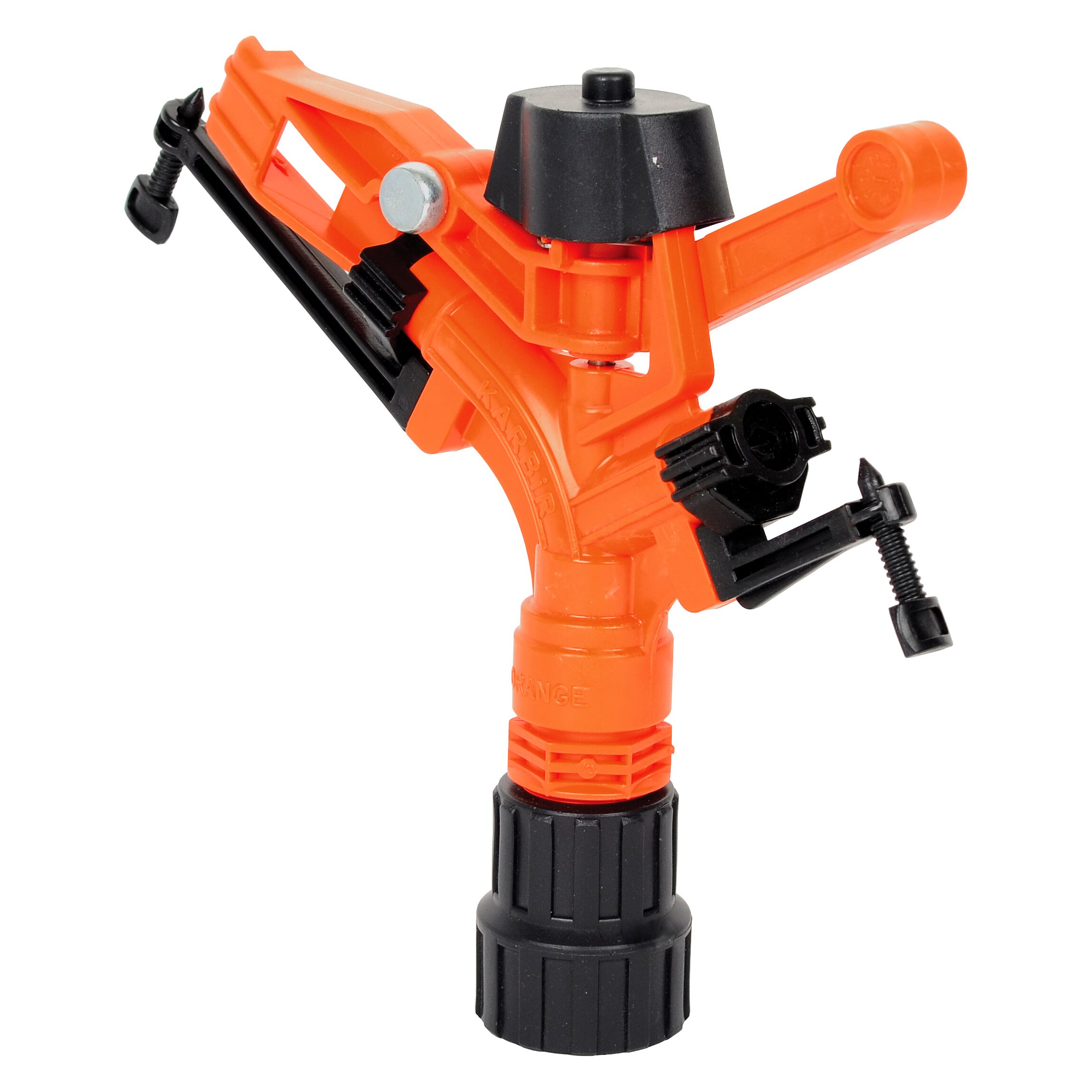

Orange sprinkler – Karbir
With the new design, the nozzle assembly is made manually improving capability. It allows the user to work with or without a breaker. The difference between this and other sprinkler heads is the use of a weight in the wing to slow down the rotation speed.
Description
- It is aimed to slow down the rotating speed due to the used weight
- With it’s angle of 30° x 25° for water exit, the exposure to unfavourable weather conditions is minimised
- Since it has a portable screwed breaker, it can be used with or without breaker
| Nozzle | 1.5 Bar | 2 Bar | 3 Bar | |||
|---|---|---|---|---|---|---|
| mm | Flow | Distance | Flow | Distance | Flow | Distance |
| m³/h | mt | m³/h | mt | m³/h | mt | |
| 5.0 x 4.2 | 1.932 | 12 | 2.024 | 13 | 2.3 | 14 |
| 4.2 x 3.8 | 1.680 | 10 | 1.760 | 11 | 2 | 12 |
| 3.8 x 2.3 | 1.281 | 9 | 1.342 | 10 | 1.525 | 11 |
